The RJWY2200 is an automatic welding and circle bending machine that bends reinforcing bar into circles, arcs and spirals — the rings for pile cages, tunnel segments, tank walls and round columns. It bends bars from Φ16 to Φ32 mm at a bending speed of 80 cm/min, with a 4.5 kW bending motor, a 380 V / 50 Hz power supply and a weight of 1700 kg.
Rings are made to the diameter the buyer sets, and the machine bends and welds continuously as the bar feeds through. The RJWY2200 suits pile-cage workshops, tunnel and metro contractors and precast plants that need round reinforcement every day. Where a standard angle bender makes corners, an arc bender makes smooth curves — the two machines do different jobs, and many cage workshops run both. The finished ring is welded as it is bent, so there is no second operation and no handling between bending and welding. The RJWY2200 is the machine a pile-cage workshop buys after the cage welder — the welder makes the cage, the arc bender makes the rings that go into it.
Send your bar diameter and ring size and we will reply with a quotation within 24 hours. WhatsApp: +86 13465772392.
This automatic welding and bending machine is a specialized steel rebar processing equipment for infrastructure projects such as bridges, tunnels, and high-speed railways. It features integrated automated production of ring-shaped steel bars through bending, welding, and cutting, and is suitable for processing ring-shaped components such as rebar cages and reinforcing rings.

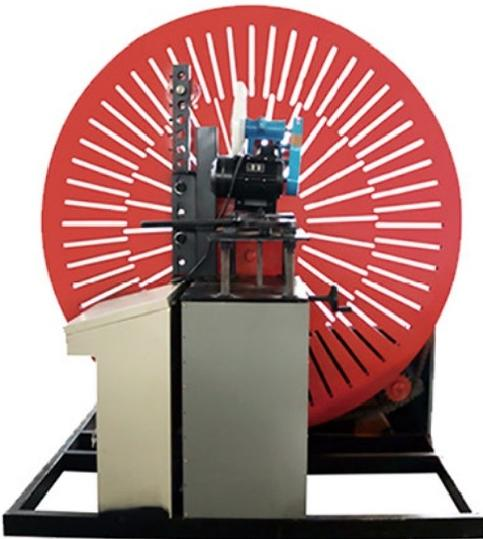

The equipment adopts a vertical disc structure, equipped with a CNC system, servo motor, and high-precision planetary gear reducer. It can automatically find the zeroing point, thread the rebar, weld, and cut positions without frequent manual intervention. It supports processing Φ16-32mm threaded steel and round steel, with a bending diameter range of 0.5-2.5 meters. The processing error is controlled within ±3mm, producing full welds and smooth overlaps, avoiding the warping problem of traditional processing.
Its diameter adjustment is quick, without the need to change the large disc. With a transmission speed of up to 80cm/min, it can achieve continuous batch processing, significantly improving efficiency compared to manual labor. The machine body is constructed of high-strength steel and equipped with safety protection devices. It boasts high energy efficiency, is energy-saving and environmentally friendly, and can be used in conjunction with a rebar cage welding machine. It is a core piece of equipment for standardized processing of ring-shaped rebar in infrastructure projects.
Features
1. High degree of automation, significantly reducing labor intensity.
2. PLC combined with a touch screen control interface for convenient operation.
3. Equipped with a transverse feeding device for easy material loading.
4. Fully automatic bending adapts to rebars of different diameters.
5. Fully automatic welding can perform welding processing on rebars of different specifications and lengths.
6. Cutting equipment automatically and completely cuts off excess material through electrical and mechanical coordination.
