RJB2-32 CNC Rebar Bending Center

The RJB2-32 is a CNC rebar bending center that bends long reinforcing bars into beam bars, column bars, hooks and special shapes — two-way, programmable and repeatable. It bends bars up to Φ32 mm, two-way from 0 to 180°, at a bending speed of 55°/s. Maximum bending spacing is 10500 mm and minimum spacing is 500 mm, with 2 standard bending cores. Total power is 17 kW, power supply 380 V / 50 Hz, air pressure 0.6 MPa, and the machine measures 12000 × 2000 × 1500 mm. Bending angle accuracy is ±1°.

The bending head moves on the machine bed, so spacing between bends is set by program rather than by moving the bar by hand. Two-way bending means the bar does not need to be turned end-for-end between bends. The standard version suits general bending work; the full-servo version suits buyers who need faster cycle times and tighter angle control on long production runs. Bars are loaded from a rack, bent to program and discharged to a collection table. The operator works from the control panel and does not handle the bar between bends. For a rebar yard that bends long bars all day, the bending center replaces the manual bending table and the bench bender — one machine, one operator, and every bend the same.

Send your bar diameter and bending drawing and we will reply with a quotation within 24 hours. WhatsApp: +86 13465772392.

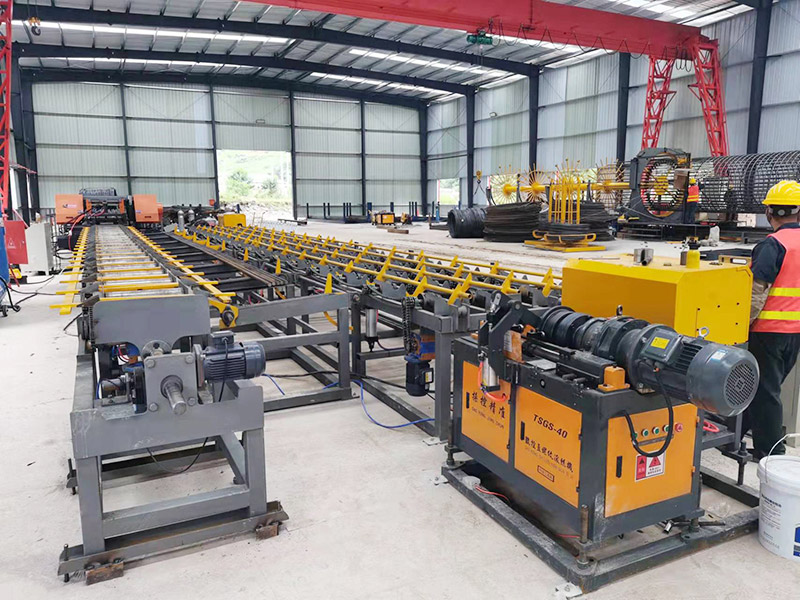

WS42 CNC Steel Bar Bending Center


CNC rebar bending centers are core equipment for automated rebar processing in infrastructure projects, featuring high-precision and high-efficiency bending and forming, suitable for rebar processing needs in various scenarios such as building construction, bridges, and high-speed railways.

The equipment is equipped with a CNC system and a dual servo drive mechanism, allowing for precise setting of bending angles (0-180°), bending radii, and rebar spacing, with a processing error of ≤±0.3°, ensuring uniform rebar dimensions. It supports processing Φ6-40mm round and threaded steel bars, and can complete the bending of single or multiple rebars into complex shapes such as arcs, folds, and irregular shapes in one operation, eliminating the need for repeated manual adjustments.

Compared to traditional manual bending, efficiency is increased by 5-8 times, significantly reducing labor costs and material waste. The machine body uses a high-strength steel structure and is equipped with automatic positioning, anti-deviation, and safety protection devices. The user interface is visual, and continuous operation can be started with a single button, making it a key piece of equipment for achieving standardized and large-scale rebar processing.

Feature

1. High-performance PLC combined with a touchscreen control interface for easy operation.

2. Flexible rebar locking mechanism design ensures bending accuracy.

3. Specially designed bending panel for long service life.

4. Servo-controlled bending spindle for high bending accuracy.

5. Mobile bending host allows for flexible bending length.

6. Integrated design with high-strength moving track for durability.

7. Bending host positioning and clamping mechanism improves bending accuracy.

8. Telescopic bending pin enables bidirectional bending of rebar.

9. High-strength material rack for large loads of raw materials.

10. High-performance equipment capable of bending multiple rebars at once and at various angles.

11. Large graphic database with dozens of preset graphics for easy retrieval and simple operation.

12. High production efficiency, more than 5 times that of traditional processing equipment.

13. The equipment has good adaptability and can process grade III rebar (HRB400) with a diameter of 10-32 mm.
